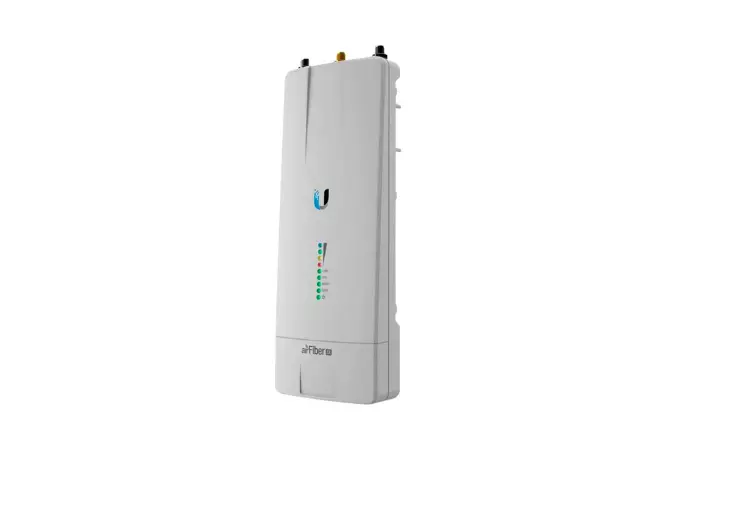

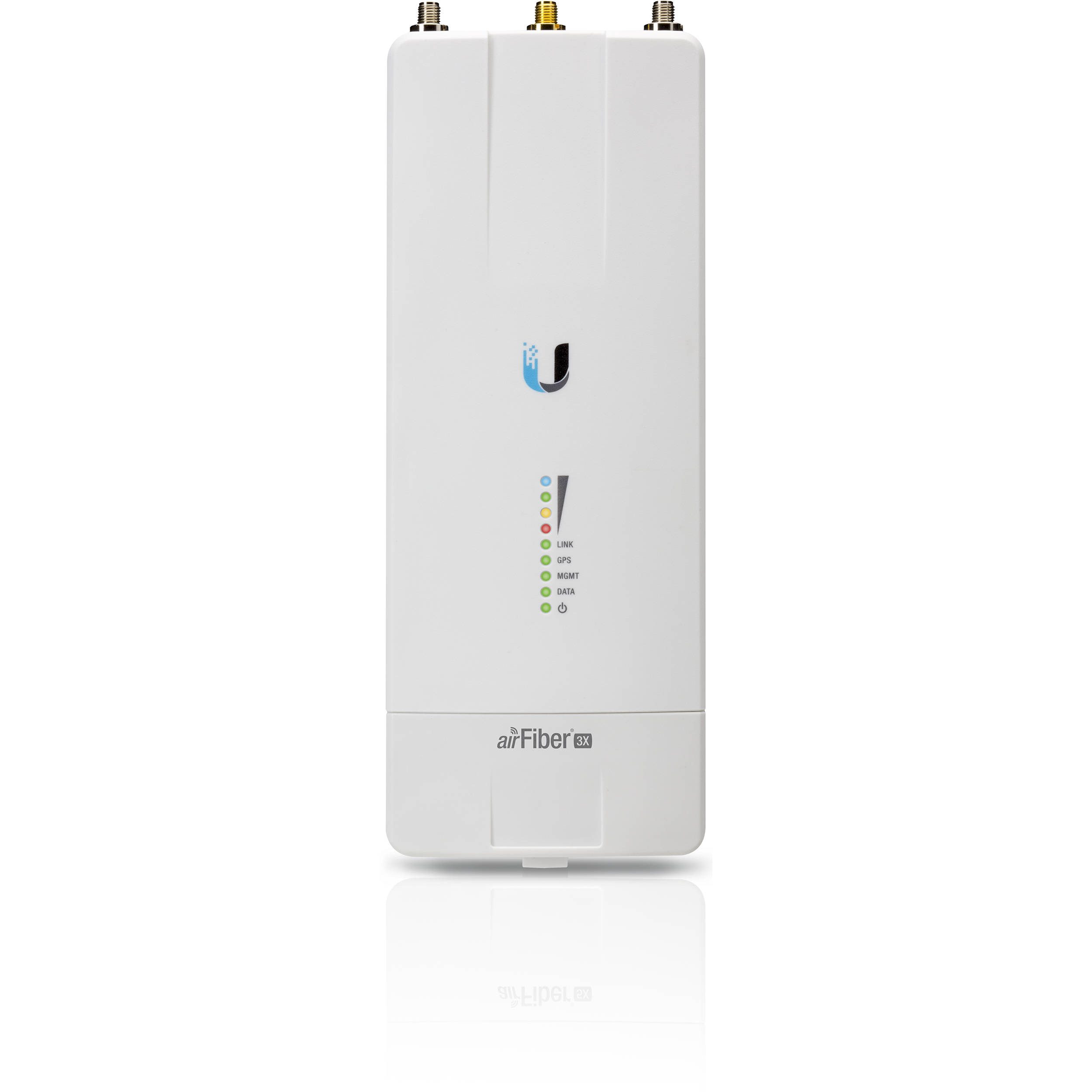

The Ubiquiti airFiber AF-3X is a high-performance 3 GHz carrier-class backhaul radio engineered for long-distance, point-to-point (PtP) wireless links. Designed using Ubiquiti’s proprietary INVICTUS™ silicon and Hybrid Division Duplexing (HDD) technology, it delivers exceptional throughput, low latency, and superior spectral efficiency for demanding outdoor deployments.
Operating in the less congested 3 GHz band, the AF-3X ensures reliable connectivity even in high-interference environments, making it ideal for ISPs, enterprise backhaul, and rural broadband links. With flexible channel widths, GPS synchronization, and support for high-order modulation (up to 256QAM), it provides scalable, stable, and high-capacity wireless networking over extreme distances.
Its lightweight, modular design allows seamless integration with compatible airFiber and RocketDish antennas, enabling cost-effective upgrades to existing PtP networks.
AED 500.00
≈ $136
Available on Request
Available on Request
Description
Key Features
- Long-range wireless bridge up to 200 km (124 miles)
- Up to 525 Mbps real throughput (high TDD efficiency)
- Operates in 3 GHz band for reduced interference
- INVICTUS™ custom silicon for superior performance
- Hybrid Division Duplexing (HDD) for low latency
- GPS synchronization for co-location and frequency reuse
- Flexible channel widths (10–50 MHz+)
- Supports 256QAM modulation

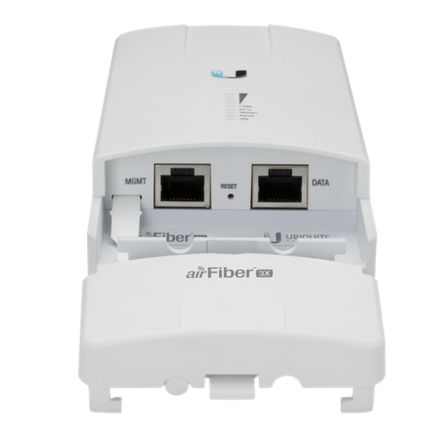

- Gigabit Ethernet connectivity with PoE support
- Designed for carrier-grade PtP backhaul applications
Specification
Overview
| Weight | 1.20 kg |
|---|---|
| Dimensions | 30 × 20 × 10 cm |
| Model | AF-3X |
| Product Type | Carrier Backhaul Radio |
| Frequency Band | 3 GHz |
| Wireless Mode | Point-to-Point (PtP) |
| Ethernet Port | 1 × 10/100/1000 Gigabit Ethernet |
| GPS Sync | Supported |
| Outdoor Rated | Yes |
| Mounting | Pole Mount |
| Operating Temperature | -40°C to +55°C |
| Power Method | Passive PoE |
