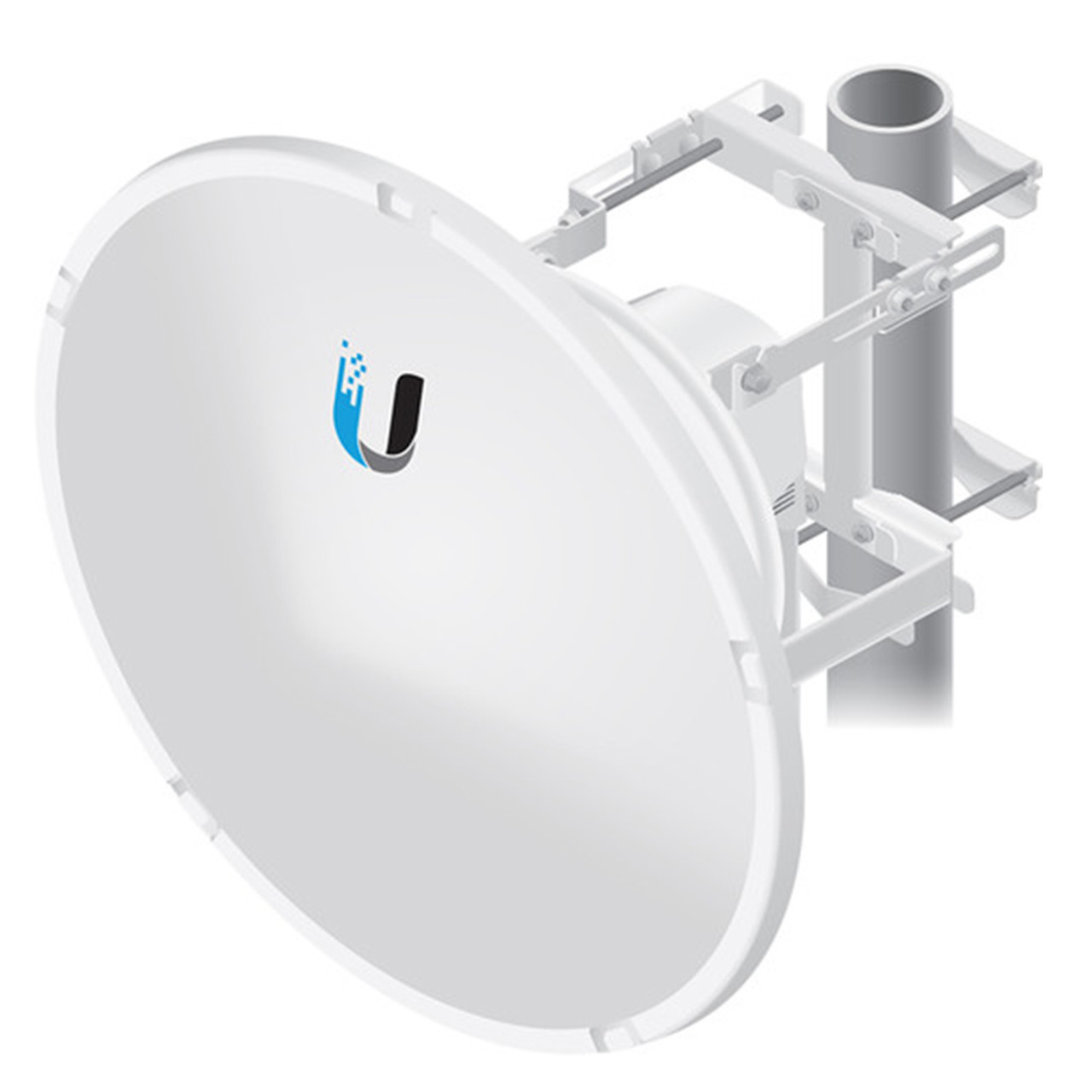

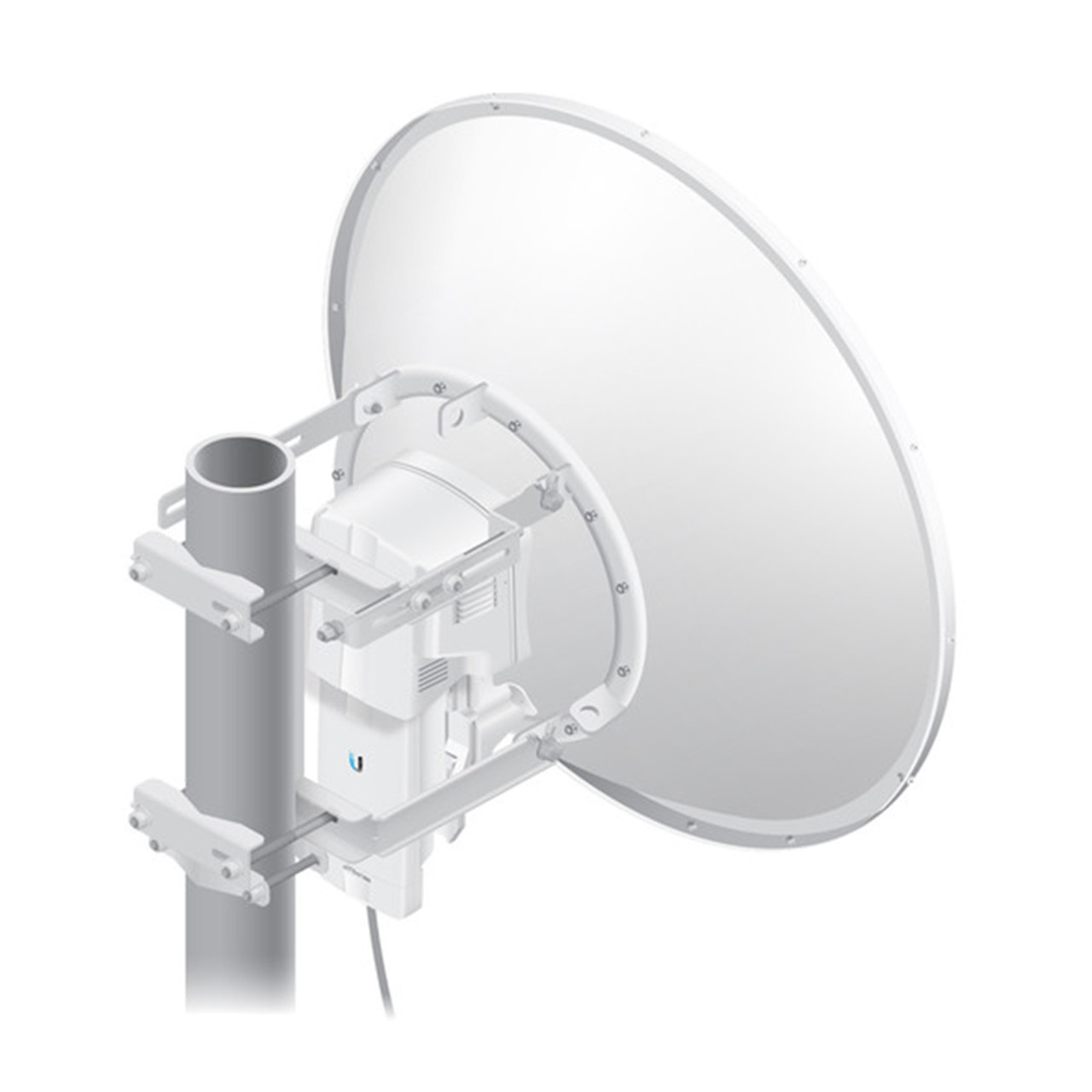

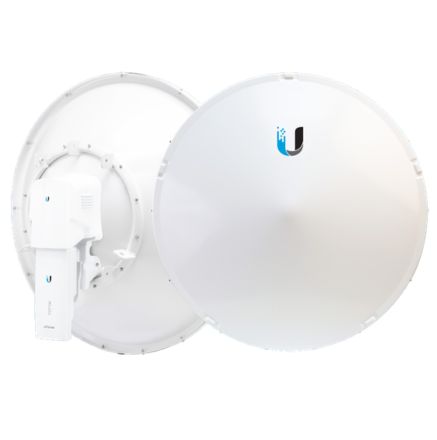

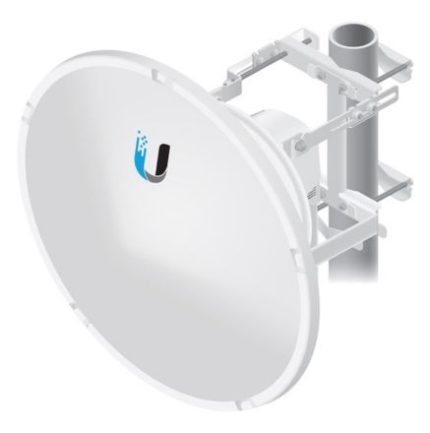

Ubiquiti [AF-11G35] airFiber 11GHz 35 dBi Dish Antenna | Carrier-Class PtP Backhaul | Long-Range Licensed Wireless
-
Pick up from the Ultra Smart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $40
-
DHL Courier delivery
DHL courier will deliver to the specified address
1-2 Days
From $40
The Ubiquiti AF-11G35 is a high-performance 11 GHz airFiber® X antenna engineered for carrier-grade wireless backhaul and long-distance point-to-point (PtP) deployments. Designed to operate in the licensed 11 GHz band, it delivers superior interference immunity compared to crowded 5 GHz networks, ensuring reliable, high-capacity links.
Featuring a powerful 35 dBi gain and ultra-narrow 2.5° beamwidth, the AF-11G35 enables stable, long-range connectivity over distances exceeding 100 km when paired with the airFiber AF-11FX radio. Its rugged, weatherproof construction and precision alignment system make it ideal for telecom operators, ISPs, and enterprise network infrastructure.
With plug-and-play integration, dual-polarity (SISO/2×2 MIMO) support, and a robust parabolic dish design, this antenna is optimized for high-throughput, low-latency backhaul applications in demanding outdoor environments.
AED 1,840.00
≈ $501
Available on Request
Available on Request
Description
Key Features (Bullet Points)
- 35 dBi High Gain – Maximized signal strength for long-range PtP links
- Licensed 11 GHz Band (10.3–11.7 GHz) – Cleaner spectrum, minimal interference
- Ultra-Narrow Beamwidth (2.5°) – Precise targeting and improved link stability
- Dual Polarization (H/V or ±45°) – Supports SISO & 2×2 MIMO deployments
- Carrier-Class Build – Industrial-grade materials for outdoor durability
- Wind Survivability up to 200 km/h – Reliable in harsh environments
- Plug-and-Play Integration – Direct mount for airFiber 11FX radios
- 60 dB Front-to-Back Ratio – Superior interference rejection
Technical Specifications
| Category | Details |
|---|---|
| Frequency Range | 10.3 – 11.7 GHz |
| Gain | 35 dBi |
| Beamwidth | 2.5° (H/V) |
| Polarization | H/V or ±45° |
| Front-to-Back Ratio | 60 dB |
| VSWR | ≤ 2:1 |
| Cross-Pol Isolation | 35 dB |
| Mount Compatibility | AF-5 / AF-5U mount system |
| Compliance | ETSI 302 217-4-2, FCC Cat B |
Dimensions & Weight
- Dimensions: Ø 811 × 460 mm (31.9 × 18.1 in)
- Weight:
- Antenna only: ~7.14 kg
- With mount: ~11.85 kg
Additional Technical Details
- Wind Survivability: Up to 200 km/h
- Wind Load: 1538 N @ 200 km/h
- Design: Parabolic reflector dish with integrated radome
- Deployment: Long-range licensed backhaul, tower links, building-to-building bridges
- Compatibility: Optimized for Ubiquiti airFiber 11FX radios
