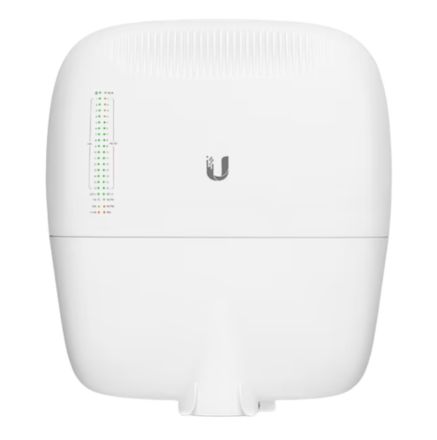

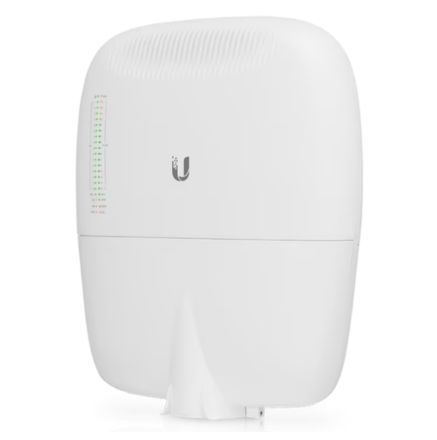

The Ubiquiti EdgePoint EP-S16 is a rugged, all-in-one outdoor networking solution designed for WISPs and advanced deployments. Combining high-performance routing, switching, and PoE power distribution, it eliminates the need for bulky network cabinets by integrating multiple components into a single compact unit.
Built with a weatherproof die-cast aluminum enclosure, the EP-S16 is engineered for harsh environments while delivering reliable connectivity via 16 Gigabit Ethernet ports and 2 high-speed SFP+ uplinks. With support for 24V/54V passive PoE and PoE+, it powers a wide range of Ubiquiti and third-party devices directly.
Powered by EdgeMAX software, this device provides advanced routing features, VLAN support, QoS, firewall policies, and deep packet inspection, making it ideal for tower installations, wireless backhaul, and ISP infrastructure.
AED 600.00
≈ $163
Out of stock
Out of stock
Description
Key Features

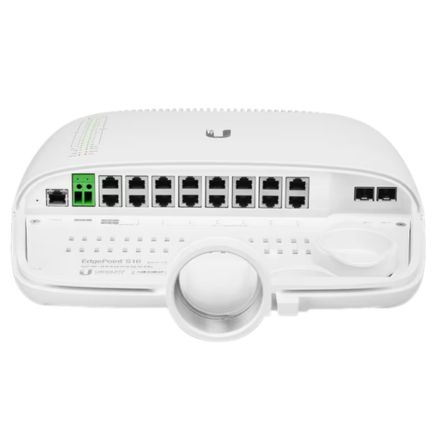

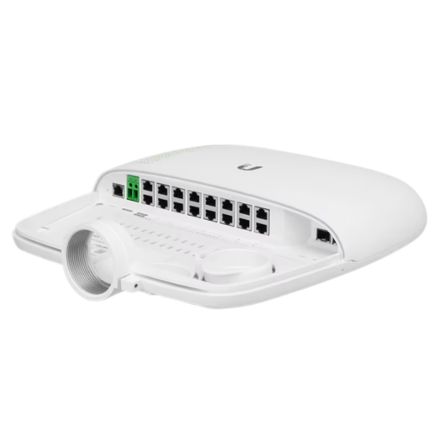

- 16x Gigabit RJ45 Ports for high-density connectivity
- 2x 1/10G SFP+ Ports for fiber backhaul uplinks
- Advanced Routing + Switching (EdgeMAX OS)
- Passive PoE Support (24V / 54V + PoE+) across all ports
- All-in-One WISP Control Point (replaces cabinet, PoE injectors, router, switch)
- Weatherproof Outdoor Enclosure (IP-rated design)
- FiberProtect Technology reduces ESD/EMI interference

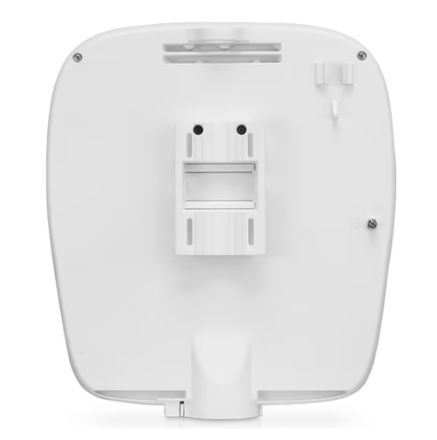

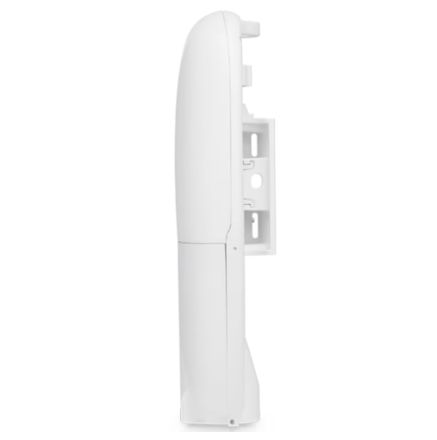

- Wall/Pole Mount Installation for tower deployments
- Intuitive Web UI + CLI Management
Dimensions & Weight
- Dimensions (without mount): 326.6 × 382.7 × 88.8 mm
- Dimensions (with mount): 326.6 × 382.7 × 105.5 mm
- Weight:
- 3.4 kg (without mount)
- 3.8 kg (with mount)
Technical Specifications
Hardware
- Processor: ARM Cortex-A9 (400 MHz)
- RAM: 256 MB
- Flash: 32 MB
- Switching Capacity: ~36 Gbps
Interfaces
- 16 × 10/100/1000 Mbps RJ45 ports
- 2 × SFP+ (1/10 Gbps)
- 1 × RJ45 Serial Port
⚡ Power
- Input: 54V DC terminal block
- Passive PoE Input: Ports 1–2
- Passive PoE Output:
- Ports 1–4: 24V / 54V
- Ports 5–16: PoE+ or 24V
- Max Power Consumption: 40W (excluding PoE output)
🌡️ Environment
- Operating Temperature: -40°C to 65°C
- Humidity: 10–90% non-condensing
🔐 Networking Features
- VLAN, QoS, DHCP, NAT
- Routing protocols: OSPF, RIP, BGP
- Firewall & ACL support
- IPv6 support
- Deep Packet Inspection (DPI)
