Ubiquiti airFiber (AF-24) 24GHz High-Speed Point-to-Point Wireless Bridge | Carrier-Class Long-Range Backhaul Radio | Up to 1.4Gbps+ - Image 1

Ubiquiti airFiber (AF-24) 24GHz High-Speed Point-to-Point Wireless Bridge | Carrier-Class Long-Range Backhaul Radio | Up to 1.4Gbps+ - Image 2

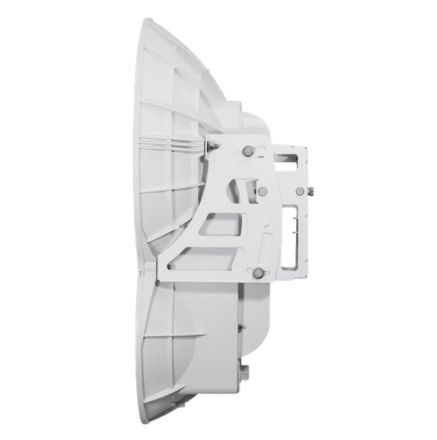

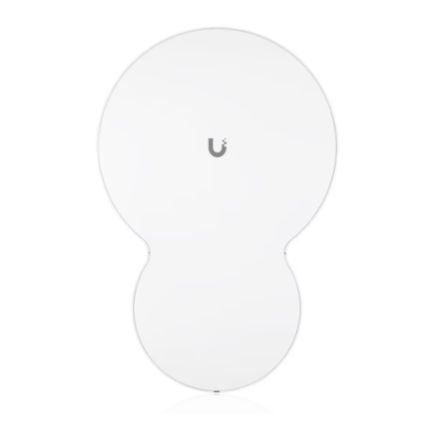

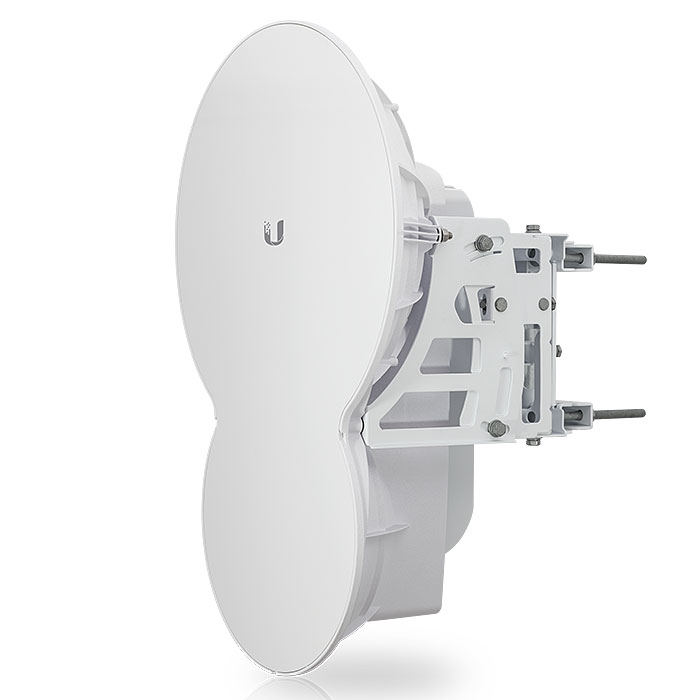

Ubiquiti airFiber (AF-24) 24GHz High-Speed Point-to-Point Wireless Bridge | Carrier-Class Long-Range Backhaul Radio | Up to 1.4Gbps+

Pick up from the Ultra Smart Store

To pick up today

Courier delivery

Our courier will deliver to the specified address

2-3 Days

From $40

DHL Courier delivery

DHL courier will deliver to the specified address

1-2 Days

From $40

The Ubiquiti airFiber AF-24 is a carrier-grade 24GHz point-to-point wireless system designed for ultra-high-capacity network backhaul. Engineered for ISP-grade performance, it delivers fiber-like speeds without the need for physical cabling, making it ideal for long-distance data links between buildings, towers, and network infrastructure.

With advanced proprietary airFiber technology, the AF-24 provides extremely low latency, high spectral efficiency, and stable performance even in challenging outdoor environments.

AED 5,490.00
≈ $1496

Out of stock

Description

Key Features

Ultra-High Throughput – Delivers up to ~1.4 Gbps+ aggregate real-world performance
Long-Range Connectivity – Supports high-capacity links over long distances (typically up to 13 km+ line-of-sight)
24GHz Licensed-Free Band – Optimized for high-performance point-to-point backhaul
Carrier-Class Reliability – Designed for ISP and enterprise-grade deployments
Low Latency Transmission – Ideal for real-time applications and backbone networks
Integrated Dish Design – Precision-aligned antenna for simplified deployment
Robust Outdoor Build – Weather-resistant housing for harsh environments
Power over Ethernet (PoE) – Simplified installation with single cable power + data

Dimensions & Weight

Antenna Diameter: ~0.6 m (60 cm class integrated dish system)
Approx. Physical Size: ~938 × 468 × 281 mm (including mount assembly)
Weight: ~7–8 kg (varies slightly by mounting configuration)

Technical Specifications

Frequency Band: 24.05 – 24.25 GHz
Max Throughput: Up to ~1.4+ Gbps aggregate (full duplex)
Latency: < 1 ms typical
Modulation: Proprietary airFiber modulation (adaptive)
Range: Up to ~13 km+ (line-of-sight, environment dependent)
Antenna Gain: ~37 dBi (integrated dish)
Networking Interface: Gigabit Ethernet
Power Method: Passive PoE (approx. 50–57V DC)

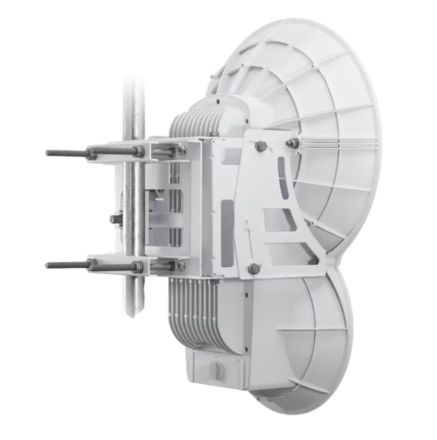

Mounting: Pole mount / outdoor tower installation
Enclosure: Outdoor UV-resistant, weatherproof design
