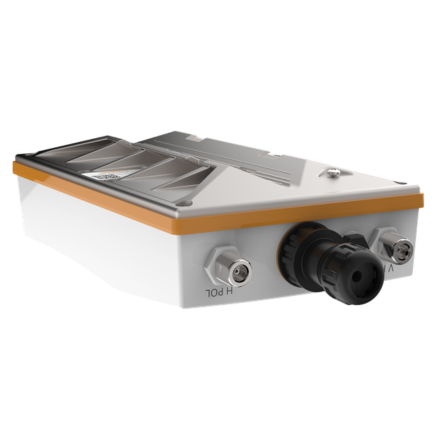

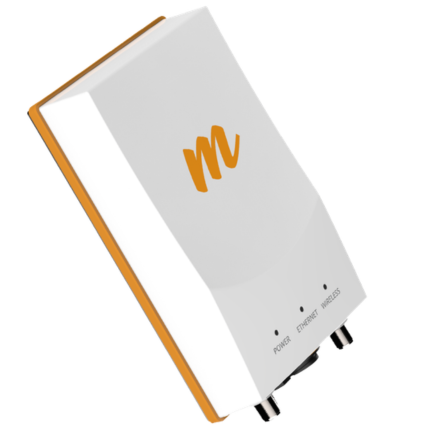

The Mimosa B5c (100-00014) is a high-performance, carrier-grade wireless backhaul radio designed for long-distance point-to-point (PtP) connectivity. Operating across the 4.9–6.2 GHz spectrum, it supports flexible deployment by allowing use with virtually any dual-polarized external antenna.
Built for ISPs, enterprises, and public safety networks, the B5c delivers fiber-like speeds over wireless links with advanced interference mitigation, GPS synchronization, and dual-channel operation. Its rugged IP67-rated enclosure ensures reliable performance in harsh outdoor environments, making it ideal for tower links, relay stations, and high-capacity network backhaul.
AED 400.00
≈ $109
Available on Request
Available on Request
Description
Key Features
- High Throughput: Up to 1.5 Gbps aggregate (1.7 Gbps PHY) wireless capacity
- Advanced MIMO: 4×4:4 MIMO with up to 256QAM modulation
- Wide Frequency Range: 4.9 – 6.2 GHz (country dependent)
- Dual-Link Reliability: Operates on two independent channels to reduce interference
- GPS Synchronization: Efficient spectrum reuse and scalable deployments
- Low Latency: Typically <1 ms in auto mode
- Flexible Antenna Support: Connectorized design (2× N-type ports)
- Rugged Outdoor Design: IP67-rated, built for extreme weather conditions
- Cloud Management: Monitoring and analytics via Mimosa Cloud
- Power over Ethernet: 48–56V passive PoE support
Specification
Overview
| Weight | 2.79 kg |
|---|---|
| Dimensions | 43 × 32 × 35 cm |
| Model | Mimosa B5c |
| Part Number | 100-00014 |
| Product Type | Point-to-Point Backhaul Radio |
| Frequency Range | 4900–6000 MHz (country dependent) |
| Max Throughput | Up to 1.5 Gbps Aggregate IP |
| PHY Rate | 1.7 Gbps |
| MIMO | 4×4:4 MIMO OFDM |
| Modulation | Up to 256QAM |
| Channel Width | 20/40/80 MHz |
| Max Output Power | 30 dBm (2-stream), 27 dBm (4-stream) |
| Ethernet | 10/100/1000 Gigabit |
| Connector | 2 × Female N-Type Power 48V Passive PoE |
| Power | 48V Passive PoE |
| Max Power Consumption | 20W |
| Lightning Protection | 6kV |
| GPS | GPS + GLONASS |
| Protection Rating | IP67 |
| Operating Temperature | -40°C to +55°C |
| Operating Humidity | 5–100% Condensing |
