Mimosa A5c 100-00037 Outdoor 5GHz PtMP Access Point with GPS Sync and Modular Antenna Connector
-
Pick up from the Ultra Smart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $40
-
DHL Courier delivery
DHL courier will deliver to the specified address
1-2 Days
From $40

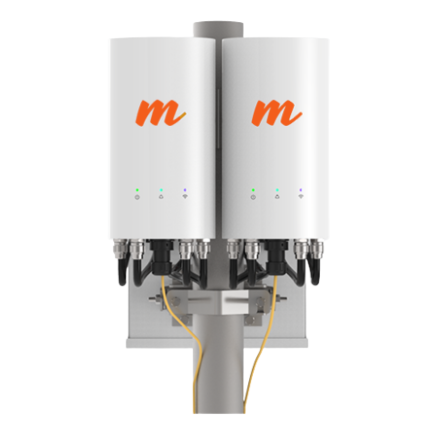

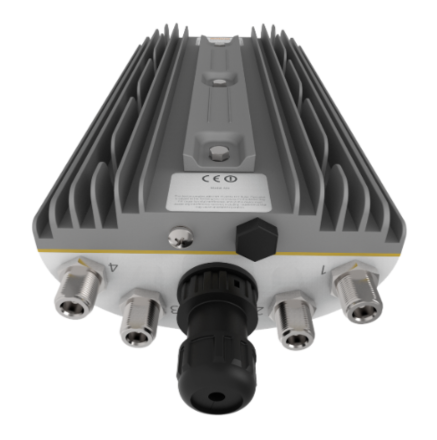

The Mimosa A5c (100-00037) is a high-performance outdoor wireless access point designed for scalable fixed wireless broadband networks. Built with advanced 4×4:4 MU-MIMO and beamforming technology, the A5c delivers fiber-like speeds of up to 1.5 Gbps aggregate capacity, enabling service providers to support high-density deployments with superior efficiency.
Engineered for long-range connectivity, the A5c supports link distances of up to 16 km, making it ideal for rural broadband, public safety networks, and enterprise backhaul solutions. Its integrated high-precision GPS synchronization allows multiple units to operate on the same channel, maximizing spectrum reuse and reducing interference.
With a rugged IP67-rated enclosure, the device is built to withstand harsh outdoor environments. Power over Ethernet (PoE+) simplifies deployment, while advanced TDMA scheduling ensures optimal performance even with a high number of connected clients.
The Mimosa A5c is the perfect solution for ISPs and network operators seeking reliable, scalable, and cost-effective wireless infrastructure.
AED 600.00
≈ $163
Available on Request
Available on Request
Description
Key Features
- Ultra-High Capacity: Up to 1.5 Gbps aggregate throughput with 500+ Mbps client speeds

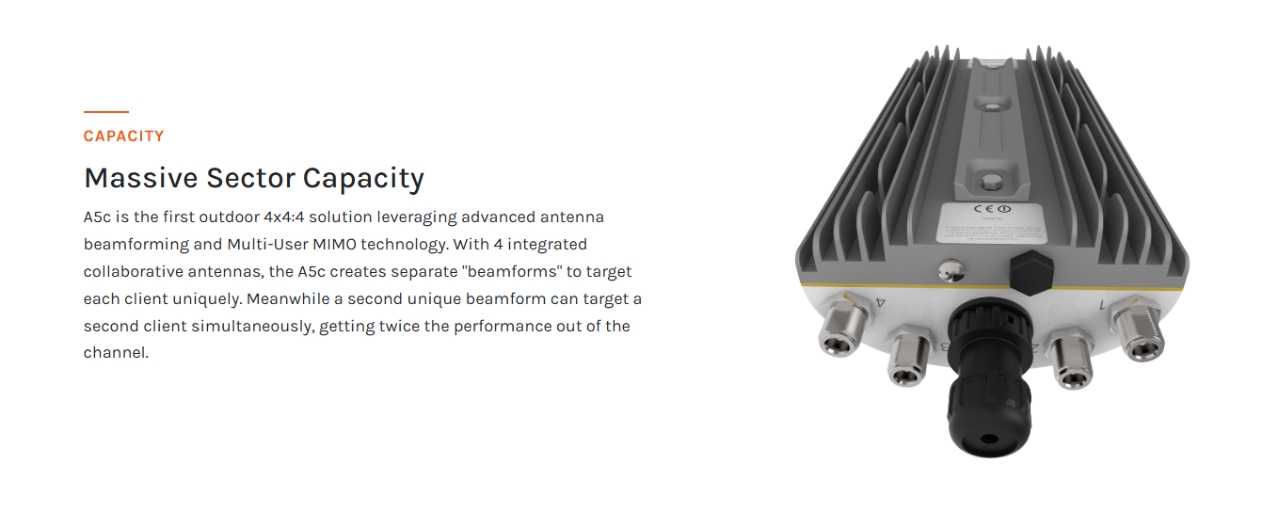

- Advanced MU-MIMO Technology: 4×4:4 beamforming enables simultaneous communication with multiple clients
- Long-Range Performance: Supports wireless links up to 16 km
- GPS Synchronization: Enables channel reuse and improved spectral efficiency
- Outdoor-Ready Design: IP67-rated for dust and water resistance
- Efficient TDMA Protocol: Optimized client performance and reduced latency
- Gigabit Connectivity: 1× 10/100/1000 Mbps Ethernet port
- Flexible Frequency Range: Operates in 5 GHz band (approx. 5.15–6.4 GHz)
- PoE+ Powered: IEEE 802.3at support for easy installation
- High Client Density: Supports large-scale deployments with efficient spectrum use
Specification
Overview
| Weight | 1.7 kg |
|---|---|
| Dimensions | 30 × 24 × 10 cm |
| Model | Mimosa A5c 100-00037 |
| Product Type | Outdoor Access Point |
| Frequency Band | 4.9–6.4 GHz (Region dependent) |
| Wireless Standard | 802.11ac-based Mimosa Technology |
| MIMO | 4×4 MU-MIMO |
| Ethernet Port | 1 × Gigabit Ethernet |
| GPS Sync | Yes |
| Antenna | External Sector Antenna Required |
| Mounting | Pole Mount |
| Enclosure Rating | Outdoor Weather Resistant |
| Power | Passive PoE |
| Management | Mimosa Cloud Management |
| Application | PtMP Wireless Broadband |
Reviews
There are no reviews yet.
