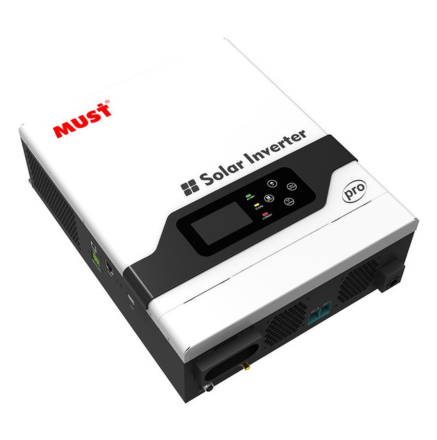

MUST PV18-3524 PRO 3.5kW Hybrid Solar Inverter 24V | Pure Sine Wave | MPPT | Off-Grid (inverter only)
-
Pick up from the Ultra Smart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $40
-
DHL Courier delivery
DHL courier will deliver to the specified address
1-2 Days
From $40
The MUST PV18-3524 PRO is a high-performance 3.5kW hybrid solar inverter designed for residential and small commercial off-grid solar systems. Featuring a pure sine wave output, integrated 100A MPPT solar charge controller, and support for batteryless operation, it delivers reliable and efficient power management. The inverter intelligently combines solar, utility, and battery sources to ensure uninterrupted power supply while maximizing solar energy utilization. Equipped with a smart LCD display, optional WiFi monitoring, and comprehensive protection functions, it is an ideal solution for modern energy independence.
AED 1,200.00
≈ $327
Only 1 left in stock
Only 1 left in stock
Description
Key Features
- 3500W / 3500VA Pure Sine Wave Output
- 7000W Peak Surge Capacity
- Built-in MPPT Solar Charge Controller
- Maximum Solar Charging Current: 100A
- Supports Batteryless Operation
- Dual AC Output for Critical & Non-Critical Loads
- Wide PV Input Range (150V–430V DC)
- Maximum PV Open Circuit Voltage: 450V DC
- Smart LCD Configuration Interface
- Optional WiFi Remote Monitoring
- USB, RS485 & CAN Communication Ports
- Fast UPS Transfer Time (10ms)
- Compatible with Lead Acid, AGM, GEL & Lithium Batteries
- Overload, Short Circuit & Deep Discharge Protection
- Cold Start Function
- High Conversion Efficiency up to 93%
Specification
Overview
| Weight | 900 kg |
|---|---|
| Dimensions | 34 × 13 × 5.6 cm |
| Model | PV18-3524 PRO |
| Inverter Type | Hybrid Solar Inverter |
| Rated Output Power | 3500W |
| Rated Capacity | 3500VA |
| Surge Power | 7000W |
| Battery Voltage | 24V DC |
| Output Waveform | Pure Sine Wave |
| AC Output Voltage | 230V AC ±5% |
| Output Frequency | 50Hz / 60Hz Auto |
| Inverter Efficiency | Up to 93% |
| Transfer Time | 10ms |
| MPPT Type | Built-in MPPT |
| MPPT Voltage Range | 150V–430V DC |
| Max PV Open Circuit Voltage | 450V DC |
| Max PV Array Power | 4000W |
| Max Solar Charging Current | 100A |
| Max AC Charging Current | 80A |
| Communication | USB, RS485, CAN, Optional WiFi |
| Operating Temperature | 0°C to 50°C |
| Protection | Overload, Short Circuit, Overcharge, Deep Discharge |
| Battery Compatibility | AGM, GEL, Flooded Lead Acid, Lithium |
| Parallel Capability | Up to 3 Units (varies by firmware/model) |
