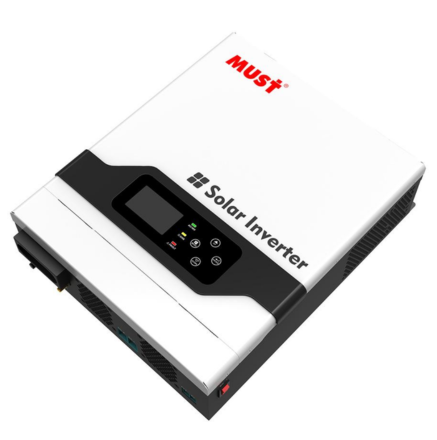

MUST PV18‑1012 VPM II Hybrid Solar Inverter 1kW 12V Pure Sine Wave | MPPT | UPS Function | LCD + Wi‑Fi Monitoring (inverter only)
-
Pick up from the Ultra Smart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $40
-
DHL Courier delivery
DHL courier will deliver to the specified address
1-2 Days
From $40
Power your home, cabin, RV, or off-grid solar system with the MUST PV18-1012 VPM II Hybrid Solar Inverter. Designed for reliable energy management, this 1000W pure sine wave inverter combines an inverter, MPPT solar charge controller, and battery charger in a compact all-in-one unit. The built-in MPPT technology maximizes solar harvesting efficiency, while UPS-grade transfer switching ensures uninterrupted power for essential appliances. Featuring a smart LCD display, multiple protection functions, and optional Wi-Fi monitoring, the PV18-1012 VPM II delivers dependable performance for residential and backup power applications.
AED 700.00
≈ $191
Only 1 left in stock
Only 1 left in stock
Description
Key Features
- Pure Sine Wave Output: Clean and stable 230 VAC output ideal for sensitive electronics such as laptops, TVs, routers, and LED lighting.
- Hybrid Solar + Battery + Grid/Genset: Smartly prioritizes solar power first, then battery, and finally grid/generator when needed.
- Built‑In MPPT Solar Charger (60 A): Maximizes solar energy harvesting with a wide PV voltage range (15–75 V DC).
- Smart LCD & Settings: Easy‑to‑use display to configure charging current, voltages, and operation modes.
- Remote Monitoring: Supports USB, RS485, CAN and optional Wi‑Fi monitoring for real‑time system data.
- UPS & Cold‑Start Support: Ensures instant backup power and ability to start without AC or battery input.
- Safety & Protection: Overload, short circuit, deep discharge, and reverse polarity protections included.
- Generator & BMS Ready: Seamlessly integrates with generators and smart battery management systems via CAN.
Specification
Overview
| Weight | 5.8 kg |
|---|---|
| Dimensions | 39.2 × 29.9 × 18.4 cm |
| Model | PV18-1012 VPM II |
| Inverter Type | Hybrid Off-Grid Solar Inverter |
| Rated Power | 1000W / 1000VA |
| Surge Power | 2000VA |
| Battery Voltage | 12V DC |
| Output Waveform | Pure Sine Wave |
| AC Output Voltage | 230VAC |
| Output Frequency | 50/60Hz |
| Peak Efficiency | Up to 93% |
| Transfer Time | 10ms (UPS Mode), 20ms (APL Mode) |
| Solar Charger Type | MPPT |
| MPPT Voltage Range | 15V–75V DC |
| Maximum PV Open Circuit Voltage | 105V DC |
| Maximum Solar Charge Current | 45A |
| Maximum PV Array Power | 600W–1000W (varies by configuration) |
| AC Charger Current | Up to 20A |
| Monitoring Interfaces | USB, RS485, CAN |
| Wi-Fi Monitoring | Optional |
| Generator Support | Yes |
| Operating Temperature | 0°C to 50°C |
| Protection Functions | Overload, Short Circuit, Overcharge, Deep Discharge, Over Temperature |
| Mounting Type | Wall Mount |
| Application | Home Backup, Solar System, RV, Cabin, Off-Grid Power |
