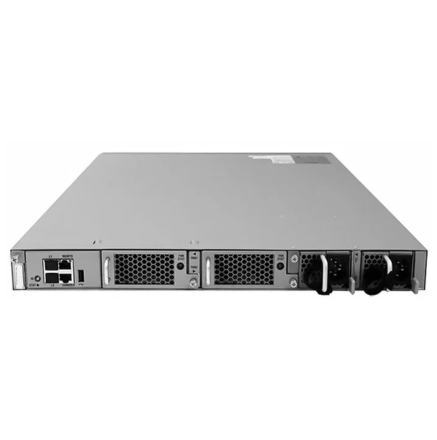

Cisco Nexus N5K-C5548UP-FA 32-Port 10GbE SFP+ Data Center Switch 1RU Layer 2/3 960Gbps
-
Pick up from the Ultra Smart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $40
-
DHL Courier delivery
DHL courier will deliver to the specified address
1-2 Days
From $40
The Cisco N5K-C5596UP-FA (Nexus 5596UP) is a high-performance, enterprise-grade data center switch designed for scalable, low-latency networking environments. Built on Cisco NX-OS, it delivers wire-speed Layer 2 and Layer 3 switching with advanced virtualization, unified ports, and flexible expansion options.
Ideal for enterprise data centers, cloud infrastructure, and high-density server environments, this 2RU switch supports high throughput, redundant power, and modular expansion for evolving network demands.
AED 3,950.00
≈ $1076
Available on Request
Available on Request
Description
Key Features
- 32 fixed unified 10GbE SFP+ ports
- Supports Ethernet, Fibre Channel, and FCoE (converged networking)
- Up to 960 Gbps Layer 2 switching capacity
- Layer 3 performance up to 160 Gbps
- 1U rack-mountable chassis design
- Cisco NX-OS operating system
- Hot-swappable redundant power supplies
- Front-to-back airflow design for data center cooling
- Supports VLAN, OSPF, BGP, STP, LACP, and advanced routing features
- Low-latency cut-through architecture
- Expansion slot for additional port modules
Specification
Overview
| Weight | 15.8 kg |
|---|---|
| Dimensions | 10 × 55 × 85 cm |
| Model: | N5K-C5548UP-FA |
| Series: | Cisco Nexus 5000 Series |
| Switching Capacity: | 960 Gbps (L2) |
| Forwarding Rate: | ~714 Mpps |
| Ports: | 32 × 10GbE SFP+ unified ports |
| Expansion: | 1 module slot (up to additional 16/48 ports total depending on module) |
| Power Supply: | Dual 750W AC redundant hot-swappable PSUs |
| Cooling: | Dual fan trays (front-to-back airflow) |
| MAC Address Table: | up to 32K–128K entries (deployment dependent) |
| Jumbo Frame Support: | up to 9216 bytes |
| Latency: | sub-microsecond |
| Management: | CLI, SNMP, XML API, GUI |
| Layer Support: | L2 / L3 |
| OS: | Cisco NX-OS |
| Redundancy: | Fully redundant PSU + fans |
