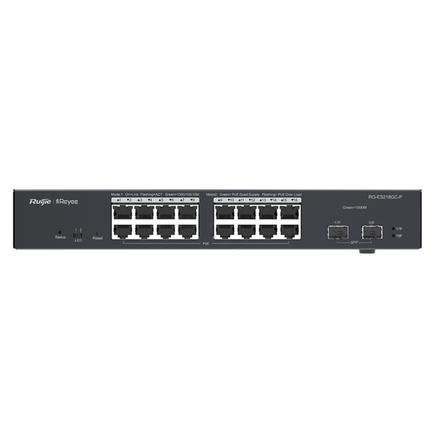

Ruijie | Reyee RG-ES218GC-P 18-Port Gigabit Smart Cloud Managed PoE Switch | 16 PoE+ Ports, 2 SFP Uplink, 240W PoE Budget

• Key Features

  • 18 Gigabit Ports – 16 × 10/100/1000Base-T PoE+ ports + 2 × Gigabit SFP uplinks.

  • 240W PoE Power Budget – Supports IEEE 802.3af/at for powering IP cameras, APs, and VoIP phones.

  • Cloud Management – Configure and monitor devices via Ruijie Cloud mobile app or web interface.

  • Optimized for CCTV Networks – Automatic IP camera detection and stable video transmission.

  • High Performance – 36 Gbps switching capacity and 26.8 Mpps forwarding rate.

  • Smart PoE Watchdog – Automatically restarts unresponsive powered devices.

  • Loop Prevention & Port Isolation – Improves network security and stability.

  • Extend Mode (up to 250m) – Long-distance PoE transmission for surveillance deployment.

  • Durable Metal Housing – Rack-mountable design with efficient cooling system.

• Technical Specifications

  Model: RG-ES218GC-P
  Switch Type: Layer 2 Smart Cloud Managed Switch

  Ports

  • 16 × 10/100/1000Base-T RJ45 PoE/PoE+ ports

  • 2 × Gigabit SFP uplink ports

  Performance

  • Switching Capacity: 36 Gbps

  • Forwarding Rate: 26.8 Mpps

  • MAC Address Table: 8000

  PoE

  • PoE Standard: IEEE 802.3af / IEEE 802.3at

  • PoE Ports: 16

  • PoE Budget: 240W

  Operating Temperature

  • 0°C to 40°C

  Power Supply

  • 100–240V AC

Dimensions and Weight


Ideal For

• IP surveillance systems
• Small and medium business networks
• Hotels, offices, and retail stores
• Wireless access point deployments
