Ruijie | Reyee RG-CS83-24GT4XS-P 24-Port Gigabit Layer 3 Managed PoE+ Switch, 4×10G SFP+ Uplinks, 370W PoE Budget
-
Pick up from the Ultra Smart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $40
-
DHL Courier delivery
DHL courier will deliver to the specified address
1-2 Days
From $40

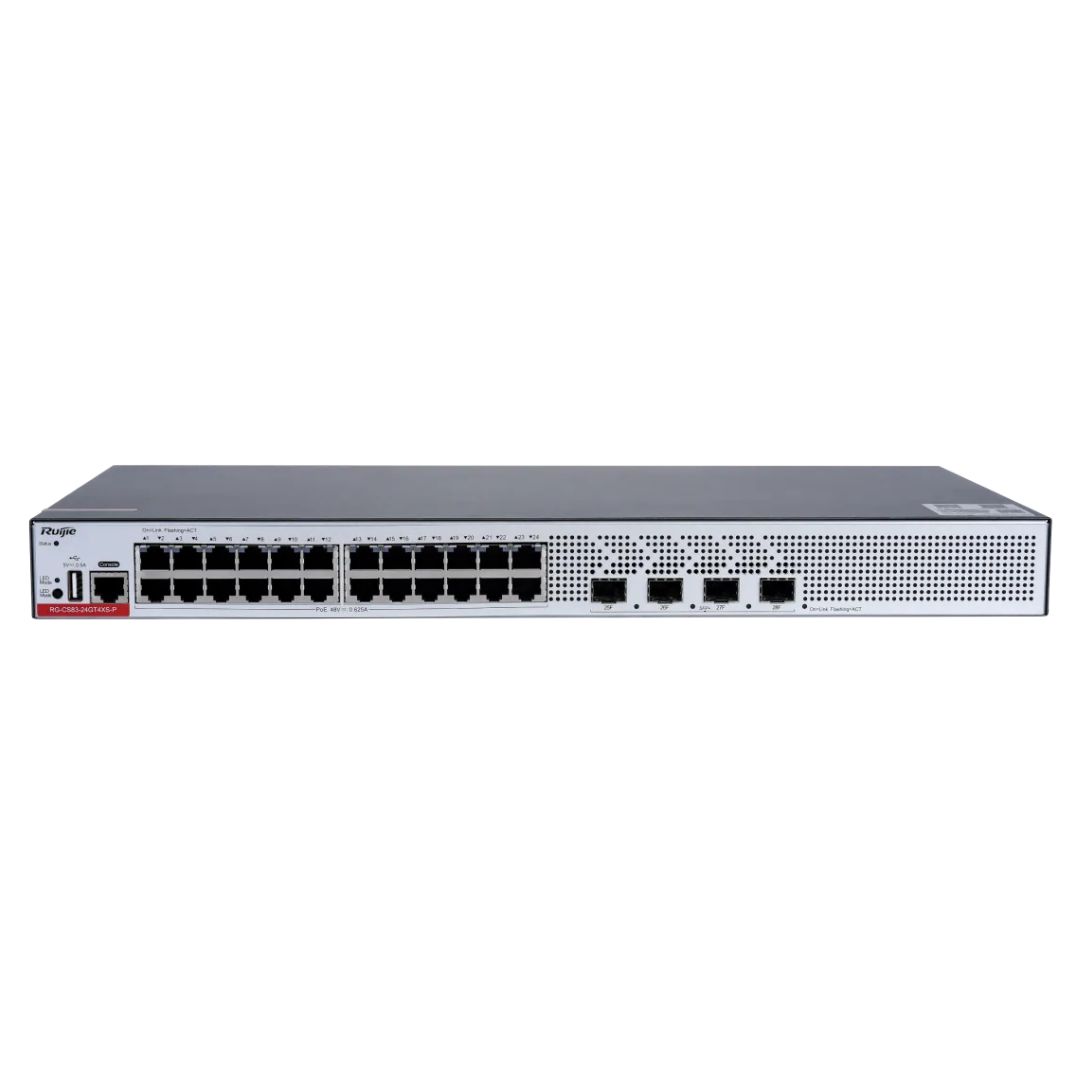

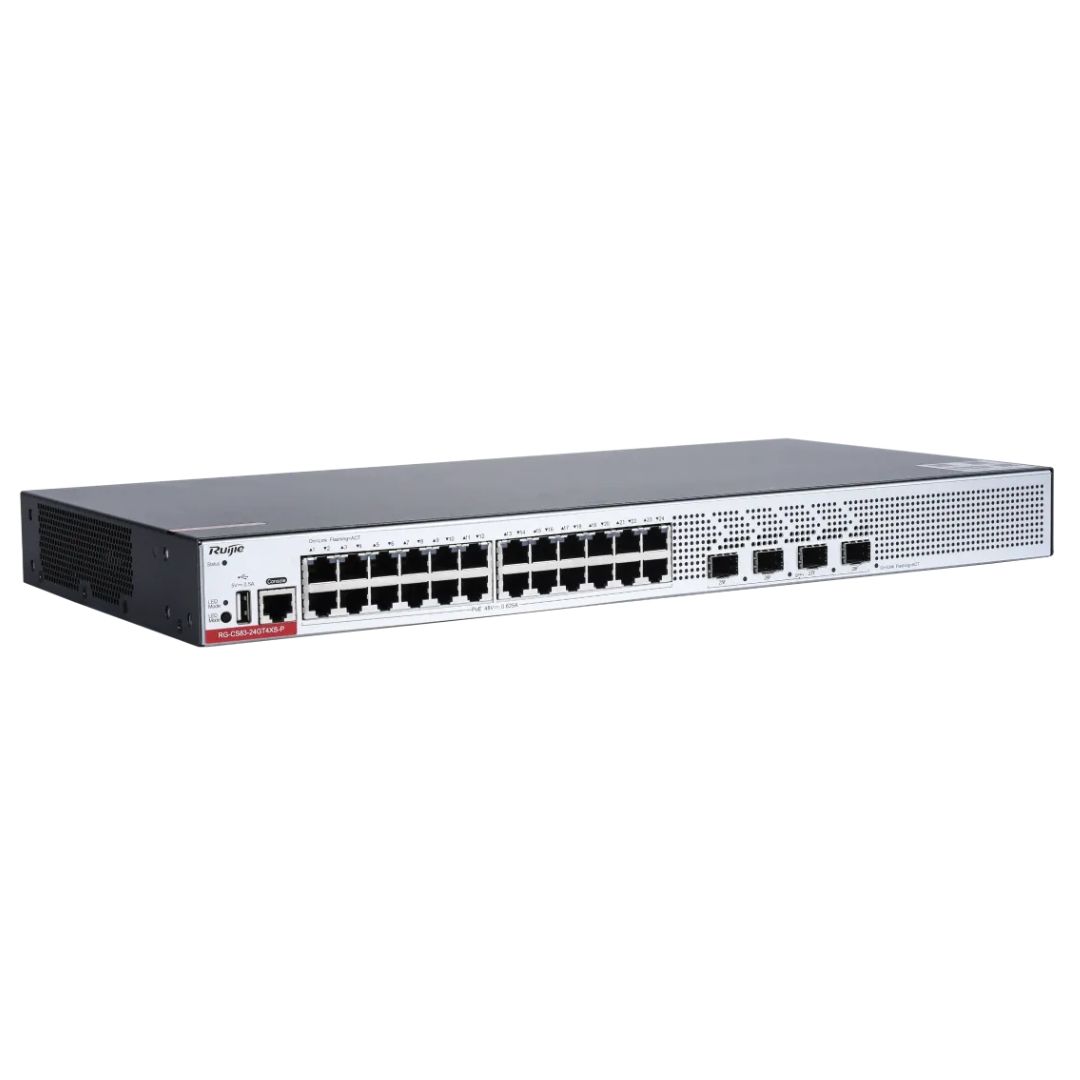

Upgrade your business network with the Ruijie Reyee RG-CS83-24GT4XS-P, a high-performance Layer 3 managed access switch designed for enterprise networks, surveillance systems, wireless deployments, and other demanding Gigabit environments.

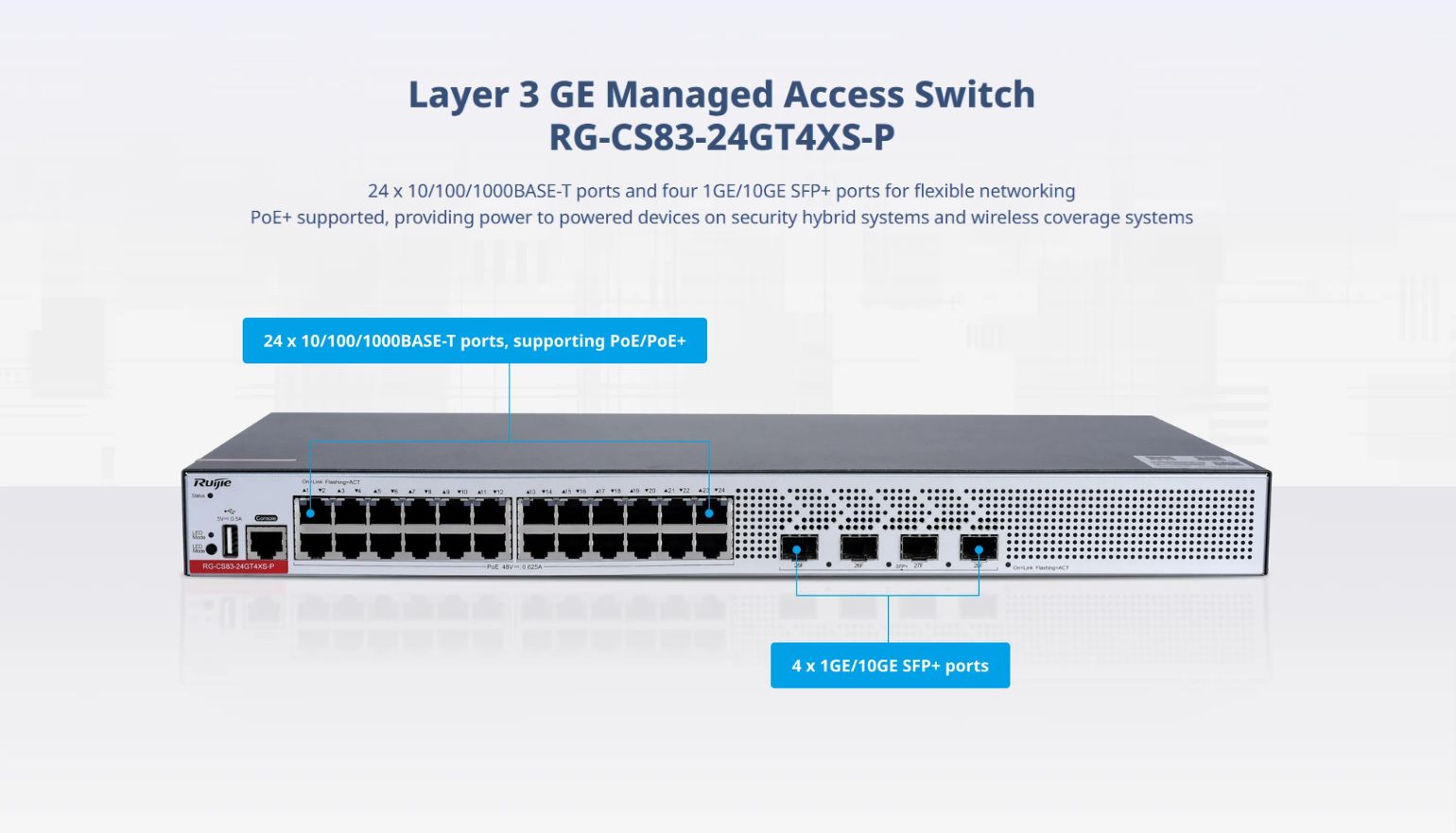

Featuring 24× 10/100/1000BASE-T RJ45 ports with PoE/PoE+ support and 4× 1GE/10GE SFP+ uplink ports, the switch provides flexible connectivity and high-speed backbone expansion. Each PoE port can deliver up to 30W, with a maximum total PoE output of 370W, making it suitable for powering IP cameras, wireless access points, VoIP phones, and other compatible PoE devices.
With 128Gbps switching capacity, 96Mpps packet forwarding, Layer 3 networking capabilities, VLAN support, STP/RSTP/MSTP, DHCP services, IPv4/IPv6 routing support, and advanced management features, the RG-CS83-24GT4XS-P provides a scalable solution for professional network infrastructure.
Its compact 1U design, flexible installation options, 10kV port surge protection, and operating noise below 35dB make it suitable for offices, schools, hotels, retail environments, healthcare facilities, and commercial security networks.
AED 2,983.50
≈ $813
Only 2 left in stock
Only 2 left in stock
Description
Key Features
- 24× Gigabit RJ45 Ports – 10/100/1000BASE-T Ethernet connectivity.
- PoE+ Support – All 24 RJ45 ports support IEEE 802.3af/at PoE/PoE+.
- 370W PoE Budget – Provides up to 30W per PoE port.
- 4× 10G SFP+ Uplinks – Supports 1GE/10GE SFP+ connections for high-speed uplinks.
- Layer 3 Managed Switching – Designed for advanced enterprise network management.
- 128Gbps Switching Capacity – High-speed switching performance.
- 96Mpps Forwarding Rate – Efficient packet processing for busy networks.
- 16,000 MAC Addresses – Supports large network deployments.
- 4,000 ARP Entries – Suitable for extensive Layer 3 networks.
- IPv4 & IPv6 Support – Supports IPv4/IPv6 unicast and multicast routing capabilities.
- Advanced VLAN Features – Supports 802.1Q VLAN, Voice VLAN, Super VLAN, Private VLAN and QinQ.
- STP/RSTP/MSTP – Provides network loop prevention and redundancy.
- DHCP Features – DHCP client, server, relay and snooping support.

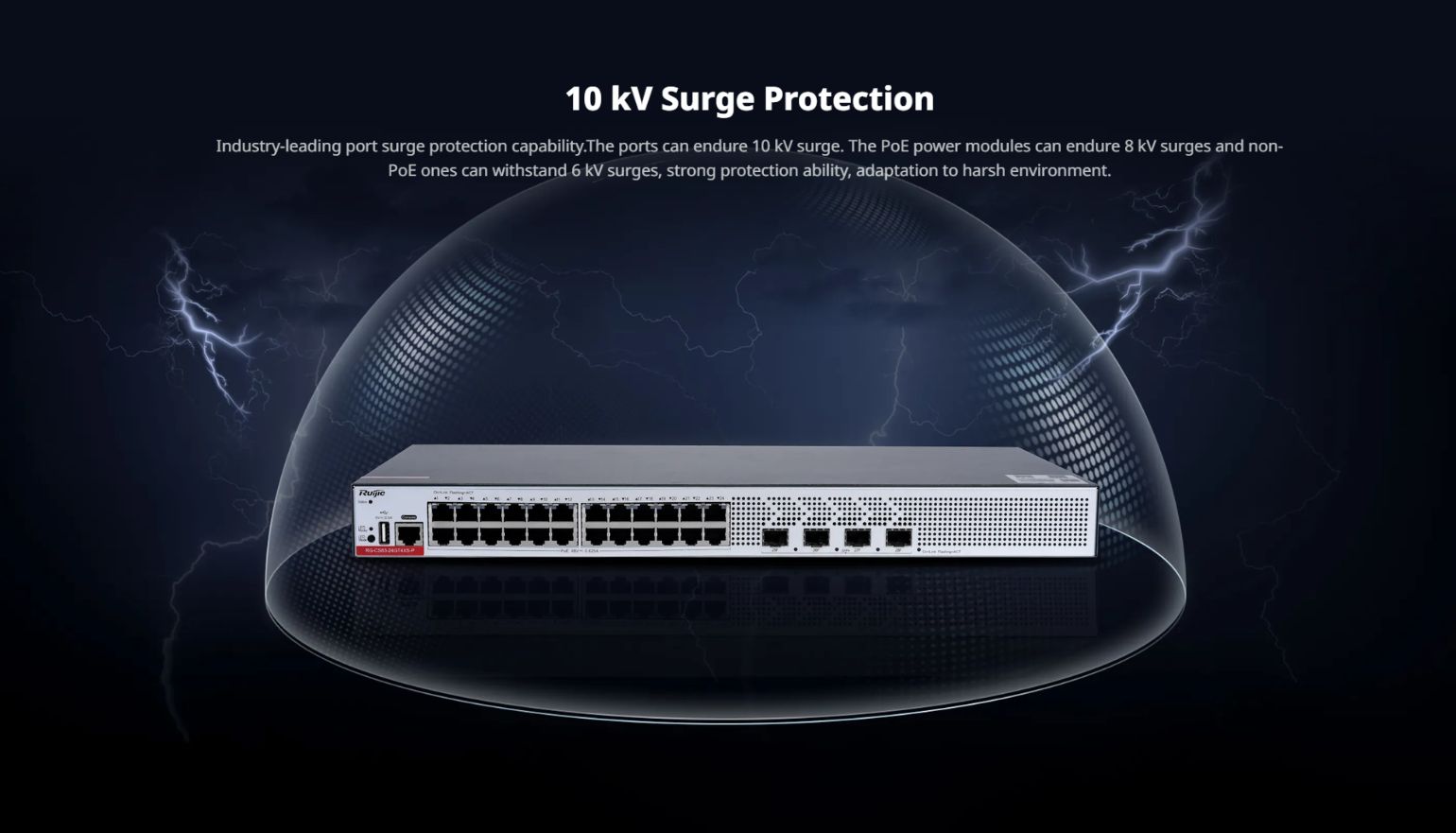

- 10kV Port Surge Protection – Enhanced protection for connected network ports.

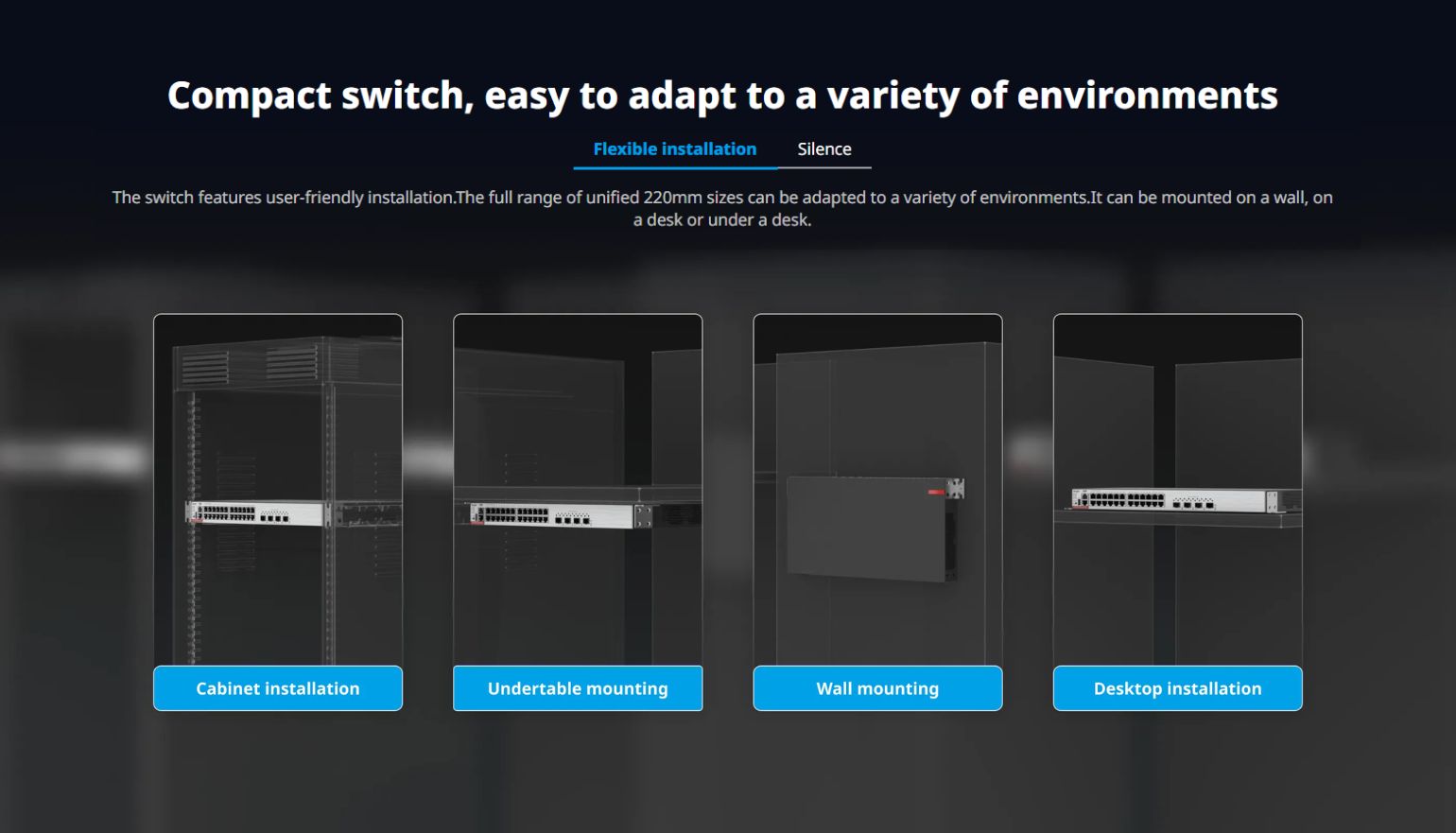

- Flexible Installation – Can be rack-mounted, wall-mounted, placed on a desk or installed under a desk.
- Quiet Operation – Operating noise is below 35dB.

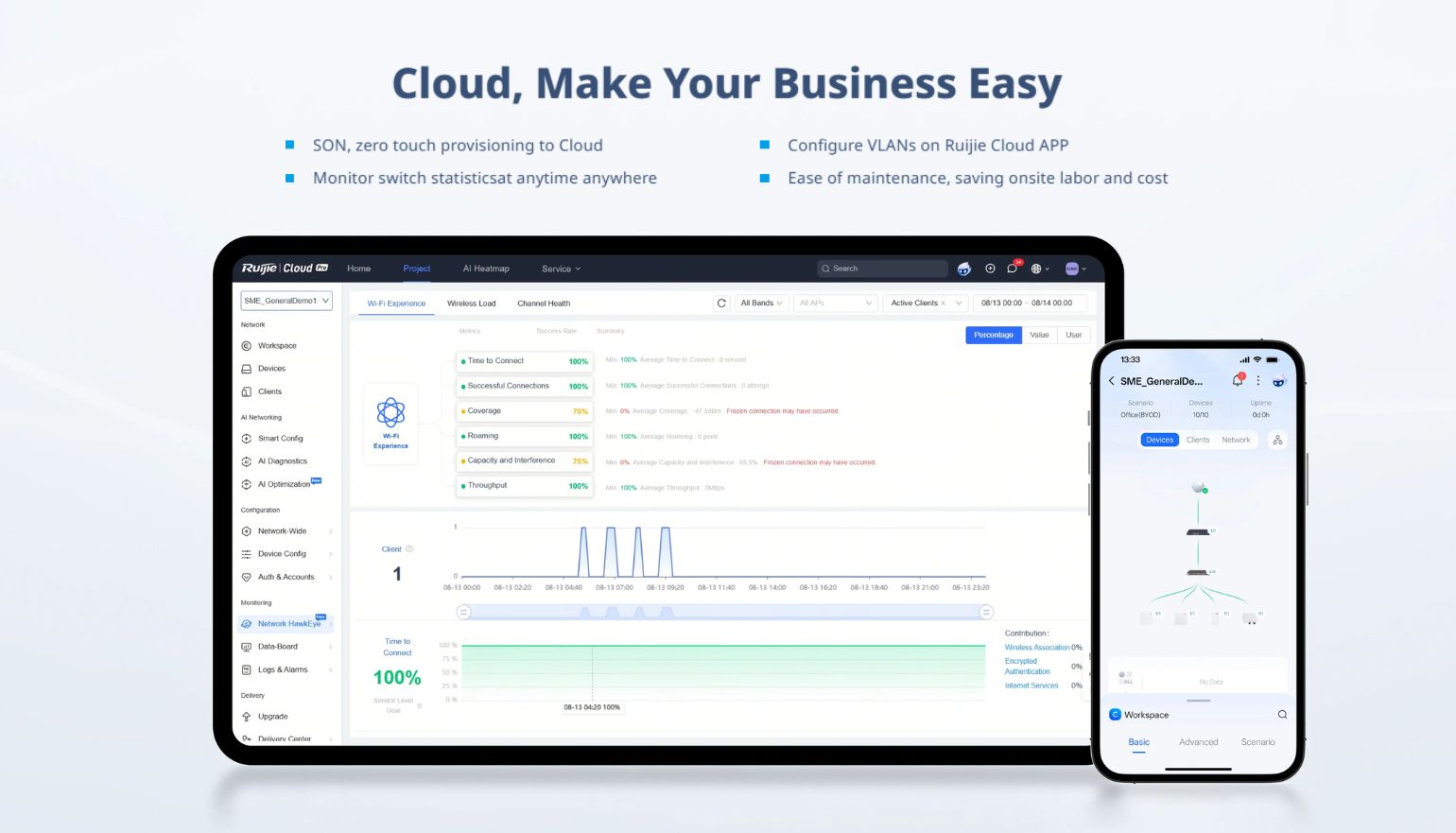

- Ruijie Cloud Management – Supports cloud-based monitoring and configuration capabilities.

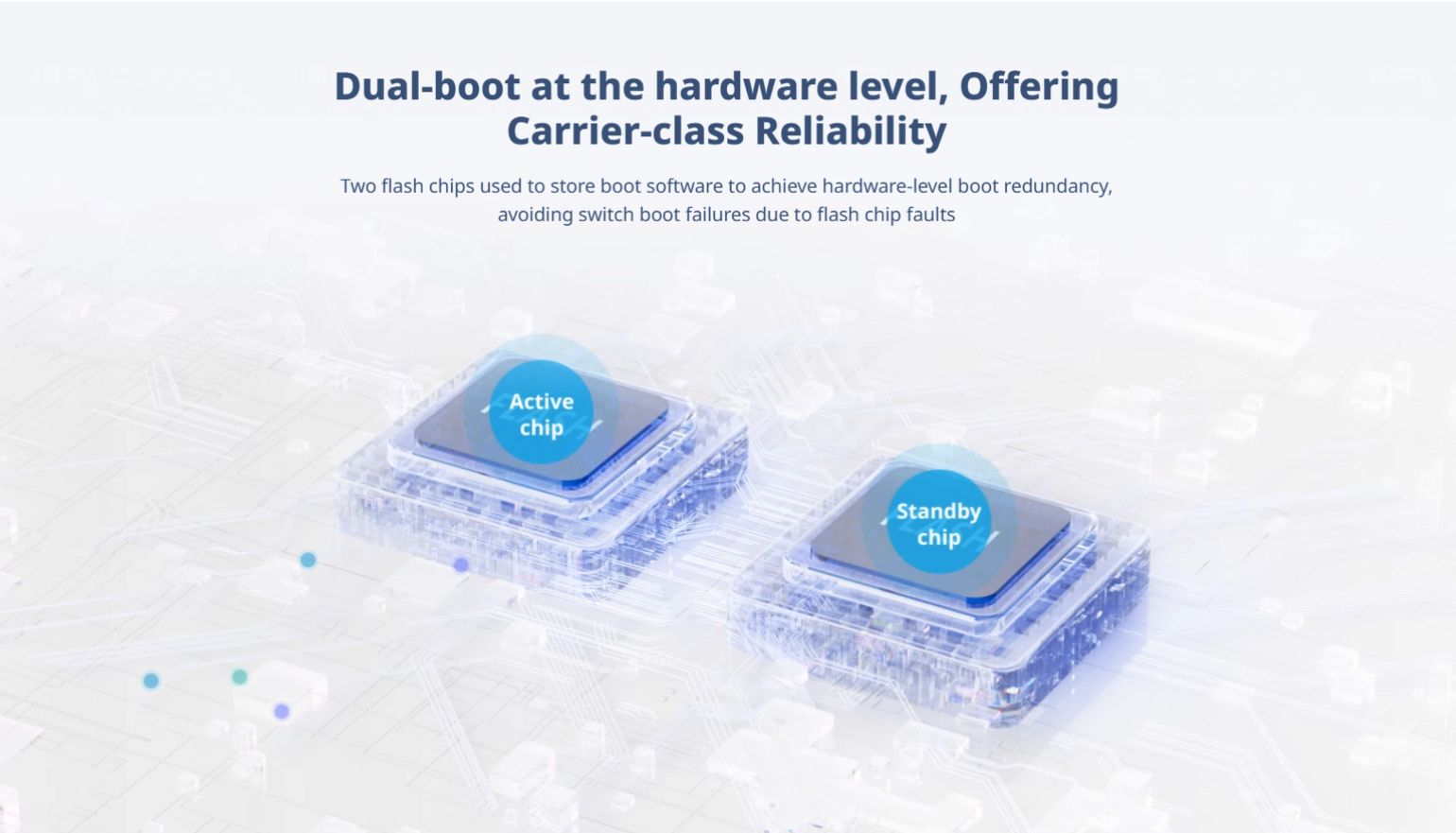

- Hardware Boot Redundancy – Dual flash chips provide hardware-level boot redundancy.
Specification
Overview
| Weight | 4.25 kg |
|---|---|
| Dimensions | 55 × 33.8 × 15.4 cm |
| Item Dimension | 44.2 x 22 x 4.36 cm |
| Item Weight | 3.40 kg |
| Model | RG-CS83-24GT4XS-P |
| Product Type | Layer 3 Managed Access Switch |
| Series | RG-CS83 |
| Ethernet Ports | 24× 10/100/1000BASE-T RJ45 |
| Uplink Ports | 4× 1GE/10GE SFP+ |
| PoE | IEEE 802.3af/at |
| PoE Ports | 24 |
| Maximum PoE Power per Port | 30W |
| Maximum PoE Budget | 370W |
| Switching Capacity | 128Gbps |
| Packet Forwarding Rate | 96Mpps |
| MAC Address Table | 16,000 |
| IPv4 Unicast Routes | 6,000 |
| IPv4 Multicast Routes | 1,000 |
| IPv6 Multicast Routes | 750 |
| Switch Buffer | 1.5MB |
| Flash Memory | 512MB |
| BootROM | 16MB |
| CPU | Dual-core, 1.0GHz per core |
| Console Port | 1× RJ45 |
| USB | 1× USB 2.0 |
| VLAN | Up to 4,096 VLANs |
| Jumbo Frame | Up to 9,216 bytes |
| Switching Features | STP, RSTP, MSTP, ERPS, LLDP/LLDP-MED |
| DHCP | Client, Server, Relay, Snooping |
| Installation | Rack, Wall, Desk, Under-desk |
| Rack Height | 1U |
| Operating Noise | <35dB |
| Power Input | 100–240V AC, 50/60Hz |
| Maximum Power Consumption | 35W non-PoE / 405W PoE full load |
| Maximum Output Power | 409W |
| Port Surge Protection | Up to 10kV |
