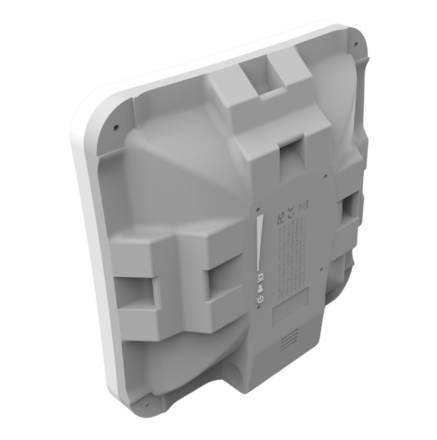

Mikrotik SXTsq 5 ac WiFi 5 Outdoor CPE (RBSXTsqG-5acD) | Wireless PTP Bridge | 16dBi Integrated Antenna | Gigabit Ethernet | Passive PoE

Key Features

• High‑Performance Outdoor Wi‑Fi 5 Device – 5 GHz 802.11ac wireless with up to 500+ Mbps real‑world throughput for robust broadband delivery

• Built‑in Directional Antenna – 16 dBi integrated panel antenna provides focused signal, ideal for long‑range point‑to‑point bridges

• All‑Weather‑Ready Design – IP54 rated enclosure withstands wind, rain, dust for reliable outdoor connectivity

• Advanced RouterOS Software – Feature‑rich network operating system with routing, QoS, firewalls, VPN, and enterprise‑grade tools

• Easy Outdoor Installation – Includes pole/wall mount kit and PoE injector for flexible deployment

• Flexible Networking – Supports AP, client, bridge, WDS, repeater and more wireless modes for versatile use cases

• Carrier & ISP Grade CPE – Perfect for last‑mile connectivity, hotspot backhaul, video surveillance links, and wireless broadband extension

• Secure & Manageable – WPA2 security, VLAN support, traffic shaping and remote monitoring

Technical Specifications

Wireless

• Standard: IEEE 802.11ac/n/a

• Frequency Band: 5 GHz

• MIMO: 2×2

• Max Data Rate: Up to 867 Mbps (theoretical)

• Antenna Gain: 16 dBi Directional

• Channel Width: 20/40/80 MHz

• Wireless Modes: AP, Station, Bridge, WDS, Repeater

Hardware

• CPU: Qualcomm Atheros QCA9533‑S803

• CPU Speed: 650 MHz

• RAM: 64 MB

• Storage: 16 MB Flash

• Ethernet: 1× 10/100/1000 Mbps RJ45

• PoE Input: Passive PoE 12‑30 V (included injector supports 24 V)

• LED Indicators: Power, Wireless, LAN

Physical

• Dimensions: 190 × 150 × 70 mm (approx.)

• Weight: ~370 g (0.82 lb)

• Mounting: Pole and wall mount kit included

• Enclosure: Weatherproof IP54

Software / Protocols

• OS: RouterOS Level 3

• Routing: Static, OSPF, BGP (Level 3 capable)

• Security: WPA/WPA2‑PSK, AES

• Services: DHCP, NAT, Firewall, VPN (IPsec, PPTP, L2TP)

• Management: Winbox, WebFig, CLI

Included in the Box

• MikroTik SXTsq 5 ac Outdoor Unit
  Passive PoE Injector (24 V)
  Power Adapter
  Outdoor Ethernet Surge Protector
  Pole/Wire Mounting Kit
  Quick Start Guide
