New Rock MX120G VoIP Gateway | Up to 96 FXS/FXO Ports | SIP Voice Gateway for IP PBX & Enterprise Telephony
-
Pick up from the Ultra Smart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $40
-
DHL Courier delivery
DHL courier will deliver to the specified address
1-2 Days
From $40

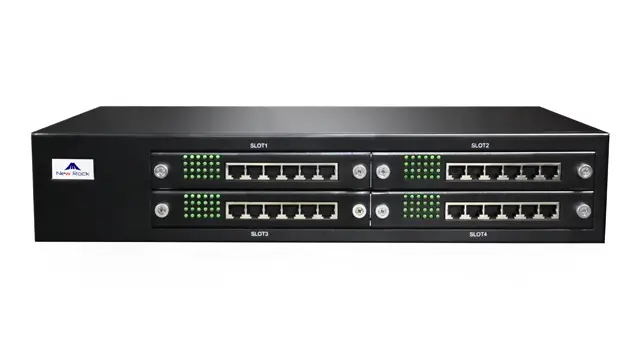

The New Rock MX120G is a high-performance enterprise VoIP gateway designed for large-scale communication systems, including call centers, multi-tenant buildings, and corporate networks. Supporting up to 96 FXS/FXO ports, it seamlessly connects analog devices such as telephones, fax machines, and POS systems to modern IP telephony networks.
Built on a reliable embedded Linux platform, the MX120G delivers advanced telephony features like call routing, 3-way calling, and caller ID, ensuring efficient communication workflows. With carrier-grade reliability—including dual Gigabit Ethernet redundancy, optional dual power supplies, and PSTN failover—your network stays operational even during disruptions.
Its cloud-based remote management, auto provisioning, and compatibility with major SIP platforms make it a scalable and future-ready solution for enterprise voice integration.
AED 800.00
≈ $218
Available on Request
Available on Request
Description
Key Features
- Supports up to 96 FXS/FXO analog ports
- Compatible with SIP and MGCP protocols
- 96 concurrent voice calls
- Supports T.38 Fax over IP and G.711 pass-through
- Dual Gigabit Ethernet ports for redundancy
- Optional dual AC/DC redundant power supplies
- PSTN failover for uninterrupted communication
- Auto provisioning and remote cloud management
- Up to 500 routing and number manipulation rules
- Compatible with Cisco, BroadSoft, Huawei IMS, Asterisk, Elastix, Skype for Business and other SIP platforms
- Hot-swappable interface cards for flexible deployment
- Enterprise-grade reliability for call centers and IP-PBX systems
Specification
Overview
| Weight | 7.5 kg |
|---|---|
| Dimensions | 55 × 42 × 18 cm |
| Product Type: | Analog VoIP Gateway |
| Maximum Ports: | Up to 96 FXS/FXO |
| Maximum Concurrent Calls: | 96 |
| Protocols: | SIP, MGCP |
| Network Ports: | 2 × Gigabit Ethernet (RJ45) |
| Fax Support: | T.38 and G.711 Pass-through |
| Routing Rules: | 500 |
| Caller ID: | Bellcore, ETSI, BT, NTT standards |
| DTMF: | RFC2833, SIP INFO, In-band |
| Management: | Web GUI, TR-069, SNMP, SSH, HTTPS |
| Remote Management: | New Rock Cloud |
| Power Supply: | 100–240V AC (optional dual AC/DC redundancy) |
| Maximum Power Consumption: | 110W |
| Operating Temperature: | 0°C–40°C |
| Storage Temperature: | -40°C–70°C |
| Mounting: | Standard Rack Mount (2U) |
| Application: | Enterprise IP Telephony, Call Centers, Hotels, Government Networks, PBX Migration, PSTN Integration |
Reviews
There are no reviews yet.
